Pipe Bending Machines

Typical users include hydraulic equipment manufacturers, where the unit can be used for Hydraulic tubing, Tubular frame and Chassis fabrication.

WE ARE OPEN AND FUNCTIONING! WE HAVE STOCKS OF SEVERAL MODELS TO MAKE IMMEDIATE DOMESTIC DISPATCHES AND OVERSEAS SHIPMENTS. PLEASE CONTACT US FOR A QUOTE.

Specifically engineered Machine, Designed to form Cold Drawn Seamless Tube (ASME SA 135 Gr.A, DIN 1630 / St 37.4) commonly used for Hydraulic Power Transmission Applications and in the Fabrication of Tubular Frames and Structures. The user-friendly layout will help you to Fabricate precision product while maintaining high level of Production.

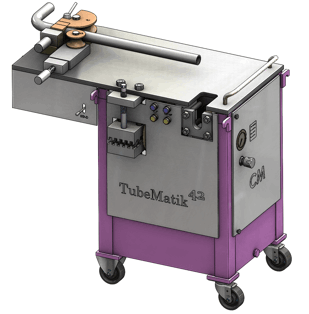

TubeMatik 42

Base Model Includes : Tube Bending
Optional Features :
✓ Tube cutting with powered circular saw
✓ De-Burring tube end – both inner and outer
✓ Ferrule Crimping (Ferrules also known as Progressive Ring)
Machine Capacity :Tubes Sizes(OD x thk) 16mm(5/8”) x 2mm(1/16”)to 42(1-5/8”) x 4mm(5/32”), Cold Drawn Annealed Seamless Tubes DIN 1630 Gr St 37.4 /E235+N
Machine Size / Weight : 1000mm (39” ) x 500mm (20”) x 1000mm (39”) Working Height Weight : 325 Kgs (720 Lbs)
Power : 1.1Kw (1.5 Hp) Electric Motor – 415V/50Hz or 380V/60Hz

For Detail Specs Download Catalogue from the link below.
